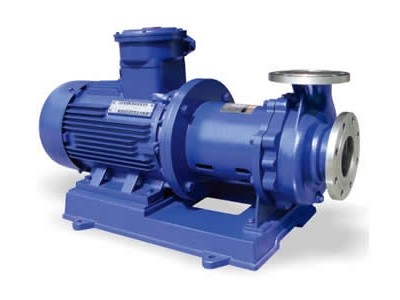

CQB magnetic pump

I. Product Overview
CQB magnetic drive centrifugal pump (referred to as magnetic pump ) usually consists of electric motor, magnetic coupling and corrosion-resistant centrifugal pump. Its main feature is the use of magnetic coupling to transmit power, no leakage. When the motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic flux passes through the gap and the isolation sleeve, acting on the inner magnetic steel, so that the pump rotor and the motor rotate synchronously. , torque is transmitted without mechanical contact. At the power input end of the pump shaft, since the liquid is enclosed in a stationary isolator, there is no dynamic seal and thus no leakage at all.



Second, [magnetic pump] product use CQB series magnetic pump is suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television printing, water treatment, national defense and other industries, is transporting flammable, explosive, volatile, toxic, Ideal for rare and valuable liquids and various corrosive liquids. It is suitable for liquids containing no hard particles and fibers with a suction pressure of not more than 0.2 MPa, a large working pressure of 1.6 MPa, a temperature of not more than 100 ° C, a density of not more than 1600 kg/m 3 and a viscosity of not more than 30 × 10 -6 m 2 /s.

Third, [magnetic pump] model meaning:
