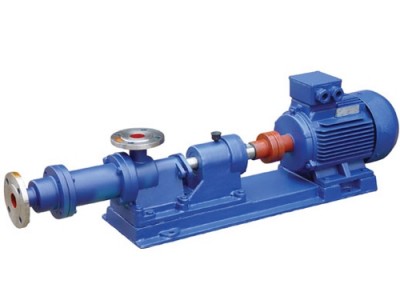

I-1B thick slurry pump

A product overview

The I-1B series stainless steel thick slurry pump is a single-screw volumetric rotary pump. The pump uses the rotation of the eccentric single-screw screw in the double spiral bushing to make the thick slurry move along the spiral groove from the suction port to the discharge port to realize the pump. Conveying function. The transmission parts of the stainless steel thick slurry pump and the pump casing that contacts the slurry are made of stainless steel and can be used for the transportation of food, pharmaceutical and corrosive slurries. Rubber bushings are available in general wear-resistant rubber, rubber for food and oil resistant rubber. The transmission mode has direct drive between the motor and the pump shaft. The motor is directly driven by the reducer and the pump, and the motor is driven by the V-belt pulley and the pump shaft. The motor is equipped with general enclosed, explosion-proof and electromagnetic speed control motors.

1 .  It can transport high concentration and high viscosity < 10000PaS and suspended slurry containing particles.

2 . The self-priming ability is strong, and the liquid can be directly sucked without the bottom valve.

3 .  The discharge pressure is independent of the speed  , and the low flow rate also maintains a high discharge pressure.

4 .  The flow rate is proportional to the speed, and the flow rate can be adjusted by the shifting mechanism or the speed regulating motor.

5. The conveying liquid flow is stable, no overcurrent, pulsation and stirring, shearing slurry phenomenon.

6 .  The pump can be reversed and the flow of the liquid changes by the direction of rotation of the pump. It is suitable for applications where the pipe needs to be flushed in the opposite direction.

7 .  Smooth operation, vibration and low noise.

8 .  The structure is simple, and the disassembly and assembly is convenient.

Stainless steel thick slurry pumps are widely used in chemical, pharmaceutical, brewing, paper, food and other units.

Type I-1BB : shell casting, transmission parts (spindle, screw and winding shaft) are made of 2Cr13 stainless steel, suitable for general neutral thick slurry conveying, generally micro acid, alkali slurry conveying.

Type I-1BF : The transmission parts and the pump casing that contact the slurry are made of stainless steel and are suitable for the transportation of food, pharmaceutical, and corrosive slurries.

Rubber bushings are available in general wear-resistant rubber, food rubber and oil resistant rubber.

The transmission mode has direct drive between the motor and the pump shaft. The motor is directly driven by the reducer and the pump and the motor is driven by the V-belt pulley and the pump shaft.

The motor is equipped with a general closed type, explosion-proof type and electromagnetic speed-regulating motor with a stepless speed changer. The gear reducer is available for purchase.

Second application range

The parts of this series of stainless steel thick slurry pump contact are made of high quality stainless steel. The screw bushing is made of medium hardness rubber, so the pump is suitable for food processing industry and pharmaceutical, chemical and other industries. E.g
1 The transportation of molasses, sugar juice, slag and beet pulp in the sugar factory;
2, loading and conveying of milk powder, starch, honey, coffee, milk, butter, edible oil, various vitamins, maltose, ketchup, mayonnaise, ice cream, etc. in the cannery, food factory;
3, brewing wine beverages, spices, fermentation broth feed ingredients. Filter filter charging grain waste slag;
4. Delivery of cod liver oil, fish oil, fish pine and fish residue in fish processing plants;
5, the fruit processing plant sugar juice, juice delivery, citrus, fruit smashing, grave material feeding, etc.:
6. Filling and auxiliary feeding of edible oil, rice and corn starch in grain and oil processing plants;
7, meat processing plants, slaughtering; oil, meat oil, packaging, waste liquid transportation;
8, pharmaceutical factory: the transportation of various vitamins, liquids, emulsions, transportation, suspension, salt water, salt sludge, dregs, etc.;
 9, chemical industry: the transport of acid, lye, various suspensions, grease, glue, various chemical dyes, paints, various adhesives, ointments, slurry feeding, dosing and delivery, especially general centrifugation Various high-viscosity materials that cannot be transported by the pump, or with solid particles and materials, can be transported by the pump;
 10. Ingredient delivery of printing inks;
 11. Paper pulp and ink transport in paper mills;
 12. Oil products from petrochemical plants, transportation of grease and waste sludge;
13. Transportation of calcium carbide sludge from acetylene station;
14. The construction industry sends mortar, lime milk, mortar, cement slurry, etc.;
 15. Available and pumped water, transport and loading during feed processing;
16. It is widely used in industrial and domestic sewage and sludge treatment. The sewage usually contains a lot of suspended matter which has certain corrosiveness and viscosity. It often contains solid particles, and it is suitable for transportation with a thick slurry pump.
17. Conveying of contaminated water, contaminated liquid and other materials used in atomic energy emission stations;
 18. Mine sewage and sludge.
In addition, it can be used in the steel industry, shipbuilding industry, ceramic industry, and tanning industry water plants.
Three product models and performance parameters
 Flow rate: 1.5-38m3/h ;

Head: 30-80m ;

Power: 1.1-15kw ;

Speed: 960r/min ;

Temperature: 0 -100 °C;

Caliber: 25-150mm .

 Stainless steel thick slurry pump performance parameters:

Model

Theoretical flow
QMPa
(m 3 /h)

Flow rate
(T/hour)

Head
(m)

Suction
(m)

Import and export trail

Speed
(r/min)

With motor
(K/w)

Working pressure
(kg/cm 2 )

Old type I-1B1 inch

1.8

1.1

30

2

25

960

2.2

3

I-1B1 inch

2.39

1.5

50

2

25

960

1.1

5

Old type I-1B1.5 inch

4.8

3

80

2

40

960

3

8

I-1B1.5 inch

5.2

3.2

80

3

40

960

2.2

8

I-1B2 inch

8.85

5.6

80

3

50

960

3

8

I-1B2.5 inch

10.6

6.5

60

3

65

960

3

6

Old type I-1B3 inch

15

10

60

3

75

960

7.5

6

I-1B3 inch

18.1

12

60

3

75

960

5.5

6

I-1B4 inch

twenty four

16

60

3

100

960

7.5

6

I-1B5 inch

36

25

60

3

125

960

11

6

Old type I-1B5 inch

27

19

60

3

125

960

11

6

I-1B6 inch

38

30

60

3

150

960

15

6
