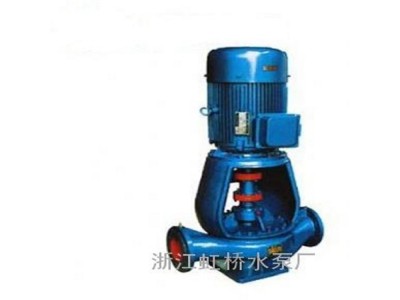

ISGB demolition pipe centrifugal pump

Disassembled Pipe Centrifugal Pump Features

1. Vertical structure, convenient installation and debugging, uniquely designed motor and pump body are connected by connecting body, high concentricity, high processing precision, greatly reduced floor space, and reduced investment in pump house construction by 30%-60%. The solid foot, compact structure, exquisite casting and appearance treatment give the new centrifugal pump a new aesthetic, which makes the product look beautiful and can compete with the famous pumps of famous foreign manufacturers.

2. It is equipped with Y series standard universal motor produced by famous domestic manufacturers, with stable operation and extremely low noise.

3. The bearing adopts international famous brand precision bearings with high precision, good reliability and long service life.

4. The impeller adopts the hydraulic model of excellent self-balancing axial force in the 1990s, which greatly prolongs the service life of pump bearings and mechanical seals.

5. The bearings in the motor bearing housing are equipped with oiling holes and oil drain holes, which are very convenient for the maintenance of the bearings.

6, detachable hard intermediate coupling, so that the pump starts without vibration, no noise, the rotating parts are equipped with a reliable safety shield, and the safety is excellent.

7. The mechanical seal is made of stainless steel, tungsten carbide, fluorine rubber and other materials. It is resistant to high temperature and high pressure, has long operating life, no leakage, no wear on the shaft, and ensures a clean working environment.

8. The pump cover structure is unique in design. As long as the hard intermediate coupling and the pump cover nut are removed, the bearing housing can be taken out very easily. Pump cover, pump shaft, impeller, etc., to replace the mechanical seal and impeller, without having to disassemble the motor, pump body and pipeline, maintenance is convenient and quick.

Disassembled pipeline centrifugal pump working conditions

1. The pump system has a high working pressure of 1.6 MPa, that is, the pump suction pressure + pump head ≤ 1.6 MPA (the pump head working pressure is greater than 1.6 MPa should be separately proposed in the order, so that the pump over-current parts and coupling parts are used in manufacturing. Cast steel).

2. The transport medium is clear water or other liquid with physical and chemical properties similar to clean water. (The conveying medium with fine particles should be specified separately at the time of ordering in order to assemble a wear-resistant mechanical seal).

3, the ambient temperature ≤ 40 ° C, altitude ≤ 1000m, relative humidity ≤ 95%
