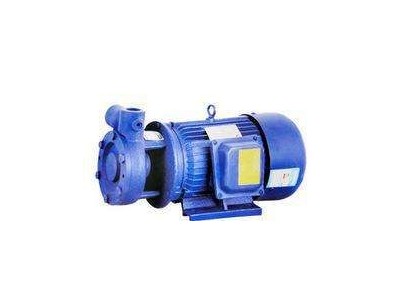

W type vortex pump

Performance parameter

model	Flow rate (m3/h)	Head (m)	Voltage v	Speed ​​(r/min)	Power (Kw)
4 points W-1.25-80 (single level)	1.25	80	220/380	2900	0.75
6 points W-1.14-100 (single level)	1.14	100	380	2900	1.5
1W2.4-10.5 (single level)	2.4	105	380	2900	3
1W2.5-12 (single level)	2.5	120	380	2900	3

Features:

W-type single-stage direct-connect vortex pump is a kind of vane pump with small flow and high lift. It has low efficiency and steep performance curve. Compared with other vane pumps, vortex pump has simple structure, small volume, light weight and self-priming ability. Self-priming is achieved by means of a simple device. Suitable for conveying clean liquids without solid particles with a viscosity of less than 15°E. W type single-stage direct-connect vortex pump is used for sucking clean water or liquid with physical and chemical properties similar to water. The liquid temperature is not more than 60. The vortex pump is often used for boilers, in shipbuilding, textile, chemical, Metallurgy, machinery manufacturing, aquaculture, fixed fire control, heat exchanger groups, agricultural remote sprinkler irrigation and other departments have a wide range of applications.



W type single-stage direct connection vortex pump installation size table

Pump model	With motor model	L	L1	L2	B	B1	B2	B3	H	H1	D	d
1W1-7	Y90S-2	340	100	106	235	140	170	70	90	95	G1"	10
1W2.4-10.5	Y100L-2	455	140	130	310	160	205	65	100	115	G1"	12
1W2.5-12	Y100L-2	455	140	150	310	160	205	70	100	125	G1"	12
1.5W2.4-10.5	Y100L-2	455	140	130	310	160	205	65	100	115	G1.5"	12
1.5DB2-0.7	Y100L-2	455	140	150	310	160	205	65	100	115	G1.5"	12
1WA3-10.5	Y100L-2	455	140	150	310	160	205	65	100	115	G1"	12
