product description:

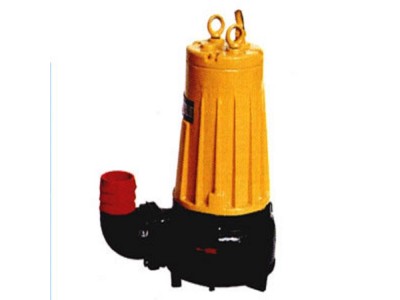

AS, AV type tearing submersible sewage pump is developed by the company using advanced German technology. This series of pumps has a tearing structure, which can tear long fibers, bags, belts, grass, cloth and other materials in the sewage. It is cracked, cut, and then discharged smoothly. It is especially suitable for conveying liquids containing hard solids and fibrous materials as well as particularly dirty, sticky and slippery liquids. The hydraulic performance of this series of sewage pump is advanced and mature, and the products have passed the performance test, and all the indicators meet the relevant design requirements.
The company's products are all designed and optimized by computer. The company has strong technical strength, rich production experience and perfect testing methods to ensure the stability and reliability of product quality.
Model meaning:
Features:
◆ Adopt advanced technology, strong sewage discharge capacity, no blockage, and can effectively pass solid particles with diameter φ30-φ80 mm.
◆ The tearing mechanism can tear the fiber material, cut it, and then discharge it smoothly without adding a strainer to the pump.
◆ The design is reasonable, the supporting motor power is small, and the energy saving effect is remarkable.
◆ The mechanical seal of the new material can make the pump run safely for more than 8000 hours.
◆ Compact structure, convenient movement and simple installation, which can reduce the construction cost and eliminate the need to build a pump house.
◆ It can be used within the full lift range to ensure that the motor will not be overloaded.
◆ The float ball can automatically control the start and stop of the pump according to the required water level change, without special care.
◆ Double rail automatic installation system, which brings great convenience to installation and maintenance, people do not have to enter and exit the sump.
◆ Equipped with fully automatic protection control box to effectively protect the product from leakage, water leakage and overload, which improves the safety and reliability of the product.
Technical scope:
Flow rate: 15-145m3/h;
head: 4-25m;
speed: 1450-2900r/min;
caliber: φ76-φ152;
temperature range: -15-+40°C;
working pressure: ≤1.0Mpa.
The main purpose:
◆ Discharge of serious polluted wastewater from factories and businesses
◆ Sewage discharge from hospitals and hotels
◆ Emission system of urban sewage treatment plants
◆ Municipal engineering, construction sites
◆ Sewage drainage system in residential areas
◆ Exploration, mine supporting machine
◆ Civil air defense system drainage station
◆ Rural Biogas digesters, farmland irrigation
Performance parameters:
model |
flow |
Head |
Motor Power |
Rotating speed |
Rated voltage |
Rated current |
With hose inner diameter |
Autotransformer |
weight |
(m3/h) |
(M) |
(kw) |
(r/min) |
(V) |
(A) |
Mm |
|||
AS10-2W/CB |
15 |
4 |
1.1 |
2850 |
220 |
5.65 |
76 |
80GAK |
30 |
AS10-2CB |
15 |
4.5 |
1.1 |
2850 |
380 |
2.9 |
76 |
80GAK |
30 |
AS16-2CB |
29 |
7.6 |
1.5 |
2850 |
380 |
3.5 |
76 |
80GAK |
33 |
AS30-2CB |
42 |
11 |
3 |
2850 |
380 |
6.4 |
76 |
80GAK |
40 |
AS55-2CB |
45 |
13 |
5.5 |
2900 |
380 |
11.1 |
127 |
100GAK |
165 |
AS55-4CB |
100 |
7.5 |
5.5 |
1450 |
380 |
11.6 |
152 |
150GAK |
180 |
AS75-2CB |
60 |
18 |
7.5 |
2900 |
380 |
15.0 |
127 |
100GAK |
185 |
AS75-4CB |
145 |
10 |
7.5 |
1450 |
380 |
15.4 |
152 |
150GAK |
200 |
AV14-4 |
twenty two |
5.8 |
1.5 |
1450 |
380 |
3.5 |
76 |
80GAK |
33 |
AV55-2 |
30 |
20 |
5.5 |
2900 |
380 |
11.1 |
76 |
100GAK |
165 |
AV75-2 |
30 |
25 |
7.5 |
2900 |
380 |
15.0 |
76 |
100GAK |
200 |
